The 1515HR is a dynamic X-ray detector designed for high-resolution inline electronics and semiconductor inspection, with a pixel pitch of 50 μm and a choice of high-efficiency or high resolution CsI, it is ideal for inline x-ray inspection. Innovative sensor design enables a frame rate of up to 55 fps and higher speeds in region of interest modes. The flexible region of interest function allows a region to be configured to optimise the frame rate.

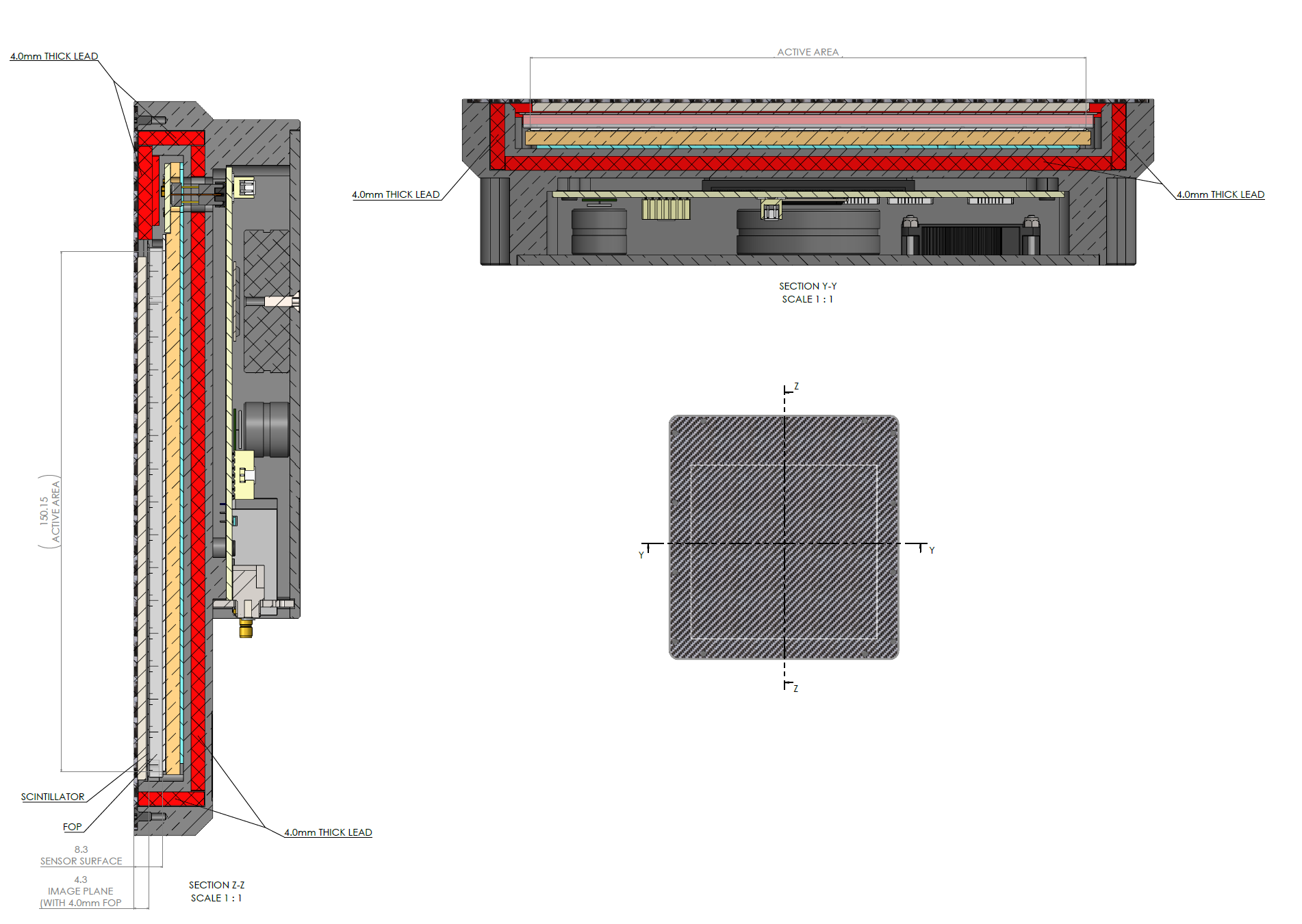

This detector employs a state-of-the-art CMOS sensor with 16-bit digital outputs and two gain modes offering a high dynamic range and a high sensitivity mode with extremely low read noise, which is ideal for low dose, real-time imaging. The sensor in encapsulated with a lead-shielded enclosure offering high tolerance to radiation damage. The detector does not require any external shielding.

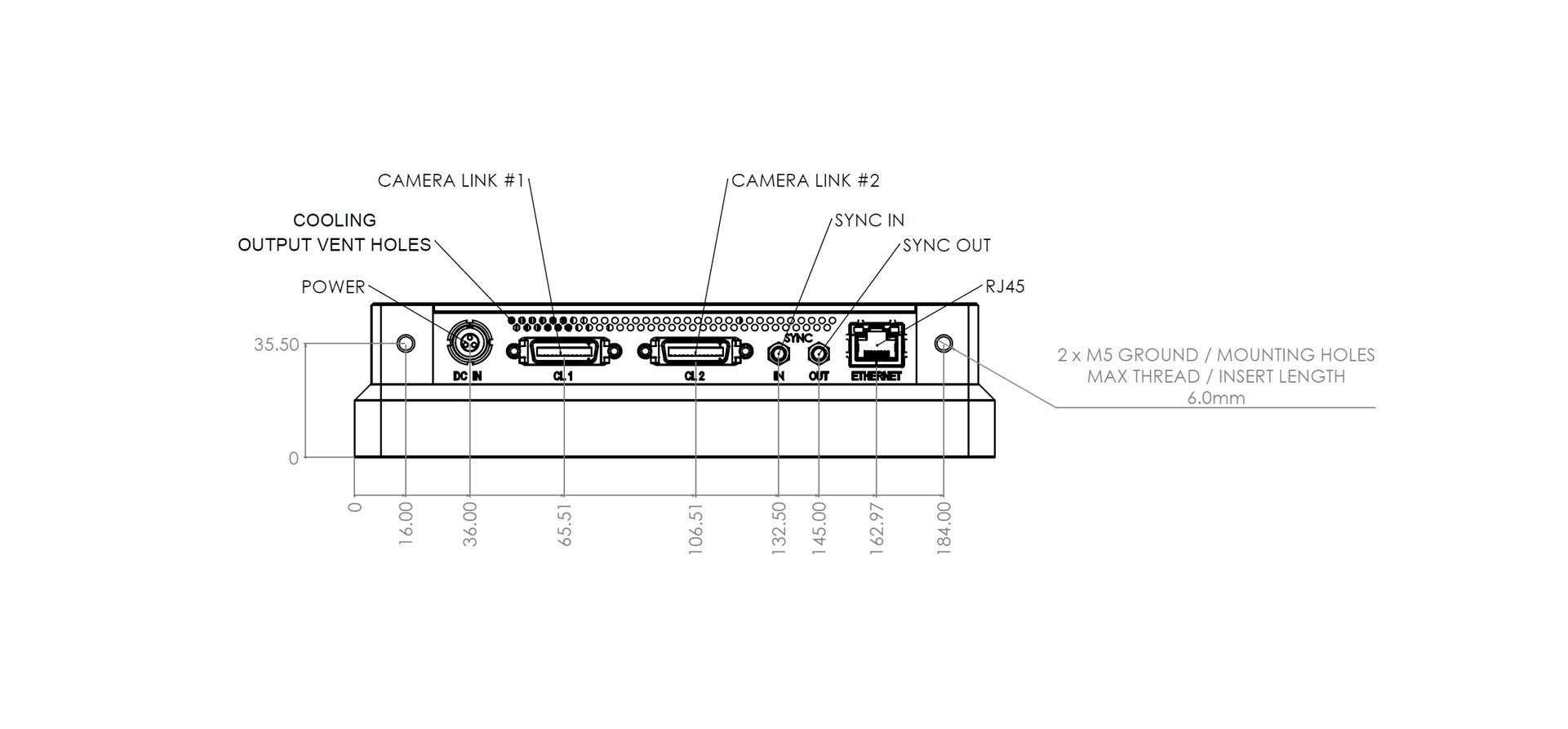

For developers, an SDK is available with DLLs for 64-bit Windows and Linux.  These include C++ and .NET wrappers for easy integration with customised software. Library functions include dark subtraction, gain correction and defect correction. Example code is provided, including a simple Graphical User Interface. The SDK supports Camera Link and GigE communications.
